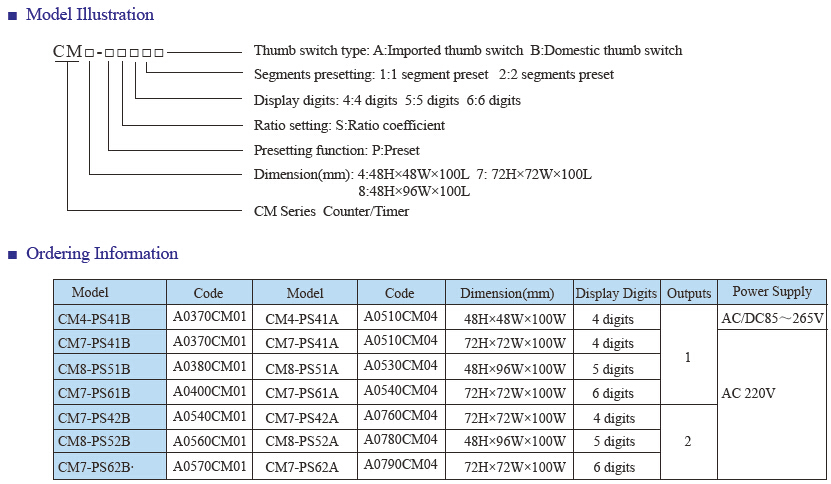

Model: CM Digital Counter Meter
Thumb switch setting, intuitive and easy to operate
CP1/CP2 2 inputs，various input type:A/B/C/D
Max 2 output channels(relay or NPN open collector),AL1/AL2
12 output modes:F/N/R/C/L1/K2P/Q/A/D/H/L
Power fail memory/timing pausing function.
Counting/timing functions switchable by software.
8 timing modes,optional decimal or sexagesimal.
CP1/CP2 2 inputs，various input type:A/B/C/D
Max 2 output channels(relay or NPN open collector),AL1/AL2
12 output modes:F/N/R/C/L1/K2P/Q/A/D/H/L
Power fail memory/timing pausing function.
Counting/timing functions switchable by software.
8 timing modes,optional decimal or sexagesimal.
